Multi-tenant agentic AI system

Shivank Awasthi (Field Solutions Architect) + Utkarsh Bhardwaj (Technical Solutions Consultant, Agentic AI), Google Cloud Architecture Center - 21 further contributors listed

TL;DR#

An organisation that wants agents for twelve business units has two bad options - twelve teams building twelve stacks, or one shared agent that must be trusted to keep twelve datasets apart - and this document is Google's answer to picking neither. The answer is that the tenancy boundary should be the cloud platform's own coarsest one, a project per business unit, with the agent's authority bounded by policy on the principal rather than by care in the code. That single decision turns out to buy three things at once: cross-tenant access becomes structurally impossible, one unit's incident stays inside that unit, and one unit's traffic spike cannot starve another. The document's real lesson is in its second half, where every cost-saving alternative it offers is the same trade in different clothing - give a piece of isolation back and re-enforce it in software you now have to write - and the sharpest instance is a cost recommendation that quietly deletes the tenant-local PII filter the security section calls essential. Vendor reference architecture, T2, no measurement of any kind: read it as a well-argued shape, never as a result.

flowchart TB
    F{"Twelve business units<br/>need agents"}
    O1["twelve teams build twelve stacks<br/><i>silos, duplicated ops, governance gaps</i>"]
    O2["one shared agent keeps twelve<br/>datasets apart by being careful<br/><i>one prompt away from failing</i>"]
    A["Neither. Make the tenant boundary the<br/>platform's own coarsest one:<br/>a project per business unit, with the agent's<br/>authority capped on the <b>principal</b>"]
    P1["cross-tenant access becomes<br/>structurally impossible"]
    P2["one unit's incident stays<br/>inside that unit"]
    P3["one unit's spike cannot<br/>starve another"]
    C["and every cheaper variant the document offers<br/>gives one of these back, to be re-enforced<br/>in software you now have to write - n14"]

    F --> O1
    F --> O2
    F --> A
    A --> P1 --> C
    A --> P2 --> C
    A --> P3 --> C

    classDef bad fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    classDef good fill:#dcfce7,stroke:#15803d,color:#14532d
    class O1,O2 bad
    class A,P1,P2,P3 good
    class C bad

This is a decision diagram, not an architecture diagram, and it draws the note's thesis rather than the system. The crux is that one tenancy decision buys three separate guarantees at once, and the whole second half of the document consists of ways to sell them back individually. It is drawn as a rejected fork feeding a single answer that fans into three payoffs and then reconverges on one warning, because the reconvergence is the argument: a reader who takes the architecture and skips the alternatives has read the easy half. The closing red box is the sharpest thing in the source and the reason it is worth reading at all, since the cost section quietly deletes a control the security section calls essential. Synthesized from n2, n4, n13, n14 and divergence d2.

The 1-minute version#

This article covers a Google Cloud reference architecture for running agents on behalf of many business units inside a single organisation. It is a design document rather than a report on anything deployed, and it works on one question. Where should the wall between two business units' agents actually sit? Its answer is a whole cloud project per unit, and the more interesting half of the document is the set of cheaper variants it offers afterwards. To see why that answer is not obvious, start with the problem it is answering.

The problem is that different business units need agents with different tools, different operational rules and different sensitive data [n1, §intro]. Left to themselves, each unit builds its own stack, and the document is precise about what that produces. It names fragmented application silos, high operational overhead, severe governance gaps and a risk of data exposure. So the organisation does the obvious thing and centralises, which is where the opposite failure appears. Build one shared agent for everybody and the separation between the electronics division and the home goods division is one prompt away from failing.

At first glance that fork is ordinary enterprise architecture, and if it were the whole problem the answer would be ordinary too. The reason it is not is that the thing you are putting inside the tenant boundary is not a service. It is a model, and a model decides for itself what it will go and fetch [derived; see §2].

Suppose instead you reached for the standard SaaS answer, which is one application, a tenant ID on every row, and a data access layer that appends the tenant predicate to every query. That answer collapses in two places at once. The set of queries is no longer finite, because an agent composes its own data access at run time and nobody wrote the query that could be reviewed. And the input steering the agent is attacker-influenceable text, so a predicate the model was persuaded to omit is not a predicate at all. The conclusion is forced. Isolation has to live somewhere the model has no vote [derived; see §2].

The idea is therefore to make the tenant boundary the platform's own coarsest boundary rather than an application-level one. Each business unit gets a dedicated cloud project, and the agent's identity is wrapped in a Principal Access Boundary that caps what that identity can reach at all, whatever the agent decides to do with the permissions it holds [n2, n4].

In practice that produces a hub-and-spoke shape. A shared routing hub takes the traffic first, where it absorbs DDoS, filters ordinary web attacks, screens the payload for prompt injection and establishes corporate identity. The hub then looks the caller's business unit up in a registry and forwards the request into the right tenant project. Each tenant project holds its own agent runtime, its own PII filter, its own MCP server and its own datastore, and the figure draws no edge between one tenant and another [n1, n5, n8, n9].

What that costs is duplication of essentially everything, once per tenant, plus a shared hub that somebody has to fund [n18]. The document knows this and offers cheaper variants, and the important observation about them is that they are all one move rather than four. A shared model endpoint, a shared MCP server, a single Model Armor instance and a private ingress each take a guarantee that was structural and convert it into one you must now enforce in code you own [n14].

How far to trust any of it is the part to be blunt about. This is a T2 vendor document and the strongest available form of unmeasured. It carries two named authors, 21 further contributors and a Terraform implementation, and it carries not one latency figure, cost figure, incident report or named deployment. Both legs of this kit's corroboration gate are the same team's prose and the same team's diagram. It is good architecture writing with zero evidence behind it.

The same argument, compressed for reference rather than for reading:

Key claims#

• The unit of isolation is the cloud project, one per business unit - not a namespace, a row filter or a tenant ID column. n2, §Architecture + visuals/fig1b_two-tenants.png
• The agent's blast radius is bounded on the principal, not the resource. PAB Policy "ensures that principals can only access resources within their approved boundaries", applied to the agent runtime so it "can't access other tenant projects or unauthorized Google Cloud services". n4, §Agentic flow step 3
• Prompt-injection filtering is placed at the network edge, wired into the load balancer through Service Extensions, so a prompt is inspected before any application code sees it. n6, §Architecture
• One tenancy decision pays out three times - security isolation, failure isolation and quota isolation are the same boundary read three ways. n13 (this brain's synthesis of three separate statements)
• Every cost-saving alternative in the document trades a structural guarantee for an enforced one. n14 - the organising claim of the source
• Moving the MCP server out of the tenant replaces a perimeter with an obligation: "you securely propagate the end-user identity... the shared MCP server uses the propagated user identity to enforce fine-grained access control" - and no mechanism is named. n10, n11
• The document's own cost section deletes the tenant-local PII filter its security section requires, keeping only the shared one, while conceding in the same sentence that the two-layer design is what "helps to ensure data sovereignty". d2
• The "even if an agent identity is compromised" guarantee holds only for the topology the figure draws, not for the shared variants recommended three sections later. d3

What you will learn, and in what order#

flowchart TB
    subgraph A["A. Why agent tenancy is not ordinary tenancy"]
        S1["1 - The silo/monolith fork"]
        S2["2 - Why a query filter is the wrong layer"]
    end
    subgraph B["B. The architecture, derived once"]
        S3["3 - The boundary they chose"]
        S4["4 - One boundary, three payoffs"]
        S5["5 - The ingress filter chain"]
        S6["6 - Identity, spent three times"]
        S7["7 - One request, end to end"]
    end
    subgraph C["C. The variations, as deletions from B"]
        S8["8 - Every alternative is one trade"]
        S9["9 - When isolation stops being structural"]
        S10["10 - Where the guarantee stops holding"]
    end
    subgraph D["D. What the document does not contain"]
        S11["11 - Running cost, and two safety controls in disguise"]
        S12["12 - Three absences"]
    end
    A --> B --> C --> D

    style C fill:#e8f0fc

This is a reading-order diagram about the note rather than about the architecture, and each box is a numbered section below, gathered into four movements. The one shaded movement carries the payload. The crux is that the architecture is movement B and the lesson is movement C, because the shape stays unremarkable cloud multi-tenancy until you watch what each cheaper option removes from it.

Movement A exists for a specific reader, namely the one who already knows cloud multi-tenancy and will otherwise skim B and conclude they have read this before. Its whole job is to establish what is different once the thing inside the boundary reasons for itself, and if you already believe that, you can move straight on. Movement B may then be skimmed by anyone comfortable with projects, IAM and load balancers, because it is derivation rather than news. C is where the document stops describing and starts deciding, and it is where both of its internal contradictions live, so it is the stretch worth slowing down for. D is short, and it is the part most likely to matter to you in six months.

Synthesized roadmap of this note, not of the source - the source's own order is architecture, alternatives, then four design pillars.

Movement A - why agent tenancy is not ordinary tenancy#

flowchart TB
    T["Ordinary multi-tenancy<br/>an engineer writes the query,<br/>a data access layer appends the tenant predicate"]
    A1["but an agent composes its own data<br/>access at run time, so the set of<br/>queries is no longer finite"]
    A2["and the input steering it is<br/>attacker-influenceable text, so a predicate<br/>the model was persuaded to omit<br/>is not a predicate"]
    C["Isolation has to live somewhere<br/>the model has no vote"]

    T --> A1 --> C
    T --> A2 --> C

    style C fill:#dcfce7,stroke:#15803d,color:#14532d

This is a refutation diagram, not a design, and its job is to disqualify an answer the reader already believes before the architecture arrives. The crux is that the thing inside the tenant boundary is not a service but a model, and a model decides for itself what it will go and fetch, which breaks the standard SaaS answer in two independent places rather than one. Both branches are drawn because either alone could be patched: a finite query set could be reviewed, and a trusted input could be sanitised. Together they force the conclusion, and the conclusion is the sentence the rest of the note spends. This movement exists for the reader who knows cloud multi-tenancy and would otherwise skim Movement B convinced they have read it before.

Synthesized from n1; the two-collapse argument is derived, and the source states it less directly.

1. The problem is not running an agent. It is running twelve of them for people who do not trust each other#

Start where the document starts, because the framing is the part most agent architecture writing skips. The scenario is not a startup shipping one assistant. It is an enterprise where "different business units require specialized AI agents that access unique tools, follow specific operational rules, and process sensitive data" [§intro].

Left alone, each unit builds its own. The document names the result precisely: "Business units might develop fragmented application silos within an organization, which can cause high operational overhead, severe governance gaps, and a risk of data exposure" [§intro, n1]. Note that the failure is not primarily technical. Twelve stacks is expensive, but the sentence's centre of gravity is governance gaps, because nobody can answer "which agents can reach customer PII" when no one place knows what exists.

So the organisation centralises, and the opposite failure immediately becomes available. Now there is one agent platform and one model endpoint. There is one datastore with a tenant column on every row. And the entire separation between the electronics division and the home goods division is a WHERE clause somebody wrote.

That fork - fragment or centralise - is ordinary enterprise architecture, and if it were the whole problem the answer would be ordinary too. The reason it is not is the subject of the next section: the thing you are putting inside the tenant boundary is not a service. It is a model.

2. A tenant ID in a query is the wrong layer, because the query is no longer written by an engineer#

flowchart TB
    L1["application layer<br/><i>a tenant predicate the model can omit</i>"]
    L2["identity layer<br/><i>a principal the model cannot re-issue</i>"]
    L3["platform layer<br/><i>a project boundary the model cannot cross</i>"]
    M["where the model gets a vote"]
    N["where it does not"]

    L1 --> M
    L2 --> N
    L3 --> N

    classDef bad fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    classDef good fill:#dcfce7,stroke:#15803d,color:#14532d
    class L1,M bad
    class L2,L3,N good

This is a layering diagram, not a stack, and the only line that matters is the one between the two right-hand nodes. The crux is that a control is worth exactly as much as the model's inability to influence it, which disqualifies every application-level isolation mechanism the moment the caller composing the query is the thing you are defending against. It is drawn with the verdict on the right rather than the layer names on the left doing the work, because engineers routinely reach for the top row out of habit and the habit is correct in every system where a person writes the query.

Synthesized from n2 and n4; the vote framing is this brain's.

Background, supplied. Skip this if you have built multi-tenant SaaS. The standard playbook is logical isolation: one deployment, one database, a tenant identifier on every row, and a data access layer that appends the tenant predicate to every query. It is cheap, it packs efficiently, and it works because the set of queries the system can emit is finite and written by your team. Its guarantee is "our code never forgets the predicate", enforced by code review and integration tests. (This block is background I am supplying so the rest reads; it is uncited by construction and is not from the source.)

Hold that guarantee up against an agent and it fails on both halves at once.

The first half fails because the set of queries is no longer finite. An agent decides at run time what to fetch, which tools to call, and in what order. Nobody wrote the query, so nobody can review it. This is the same structural problem agent-security.md records as OAuth's open question, where a client that chooses its actions at run time cannot honestly declare up front what it needs, and so drifts toward asking for everything.

The second half fails because the input steering the agent is hostile. The text the model is acting on came from a user, and it may have come from a document that user uploaded or a web page a tool fetched. Prompt injection means the instruction set is attacker-influenceable. A predicate appended by code you control is fine, and a predicate the model was persuaded to omit is not.

💡 Prompt injection - text arriving through data (a message, a document, a tool result) that the model treats as instructions. The defining property is that it needs no access to your systems: the attacker writes English, and the agent, which does have access, carries it out.

In short, the isolation has to sit somewhere the model has no vote at all, below the application, and enforced by something that does not read the prompt. That requirement is what picks the boundary, and it is what the next section is about.

Movement B - the architecture, derived once#

flowchart TB
    Q1{"where does the wall go?"} --> S3["3. the platform's coarsest boundary:<br/>one project per business unit"]
    S3 --> Q2{"what does that one<br/>decision actually buy?"}
    Q2 --> S4["4. three payoffs from one boundary:<br/>security, failure, quota isolation"]
    S4 --> Q3{"what has to happen<br/>before a request gets in?"}
    Q3 --> S5["5. an ingress filter chain, each filter<br/>catching what the previous one cannot"]
    S5 --> Q4{"and who is the caller,<br/>once they are in?"}
    Q4 --> S6["6. identity established once at the<br/>front door and then spent three times"]
    S6 --> S7["7. one request, traced end to end"]

    style S7 fill:#dcfce7,stroke:#15803d,color:#14532d

This is a derivation diagram, not a component map, and the questions are what make the architecture feel forced rather than chosen. The crux is that this whole movement is one decision and its consequences, so a reader who understands section 3 can predict most of what follows. It is drawn as a question-and-answer descent because the source presents these as parallel design pillars, and parallel presentation hides the dependency: the filter chain exists in that order because each filter catches what the one before it structurally cannot, which is not obvious from a list. Section 7 is green because tracing one request end to end is where the design stops being a diagram, and it is the place to check whether you actually believe the preceding four sections.

Synthesized from n2, n4, n5, n6, n8, n9.

3. The boundary they chose is the platform's coarsest one, and that is the point#

• What it teaches: the answer to "where do we put the boundary" is as low as the platform will let us. Each business unit is a separate Google Cloud project - "Each tenant project is a dedicated Google Cloud project for each business unit" - and each project is wrapped in a PAB box [n2, §Architecture].
• Corroborated by: the prose's Tenant projects row, which lists exactly the components the figure draws inside each tenant: PAB, Agent Runtime, Model Armor, MCP servers, datastore, model.
• And look at what is not drawn. There is no line between Tenant A and Tenant B. Every arrow entering a tenant comes from above, from the shared frontend. The isolation claim is not annotated anywhere in the figure; it is expressed as an absence of edges, which is the strongest way a diagram can say it [n2, visuals/fig1b_two-tenants.png].

The choice is deliberate and worth arguing about, because it is the expensive one. A project per unit means duplicating the runtime, the filter, the MCP server and the datastore per unit, and it means onboarding a business unit is an infrastructure act. In exchange, the guarantee stops depending on anybody's code being careful.

Three mechanisms are stacked at three different scopes, and the document is explicit that you use all three rather than picking one - "combine tenant project-level isolation with PAB Policy and VPC Service Controls at the organization level" [§Security, VPC row, n3]. The first is the project itself, which is a resource container, so resources belong to one unit and IAM grants are scoped to it. The second acts on the actor rather than the container. A PAB Policy means a principal cannot reach outside its approved boundary even if some IAM policy grants it access. The third is organisation-wide and is about data leaving rather than about who may enter, because a VPC Service Controls perimeter is the exfiltration control. As a recap:

💡 Principal Access Boundary (PAB) Policy - a policy attached to a set of principals (users, service accounts, agent identities) that caps the resources those principals may access, whatever permissions they are otherwise granted. An ordinary IAM grant answers "may this principal do this?"; a PAB answers "is this principal allowed to be here at all?", and it wins.

That distinction between the first two rows is the load-bearing one, so it is worth being slow about. IAM is additive and distributed, which means any project owner can grant any principal access to their resources, so the set of things an identity can reach is the union of decisions made by many people over time. A principal boundary is subtractive and central. It does not matter who granted what, because the principal cannot leave the box. That is exactly the property you want against an agent, because the failure you are defending against is not "someone wrote a bad grant" but "the agent was talked into using a grant that legitimately exists" [n4, §Agentic flow step 3].

One thing the figure does not contain, which you should notice now and I will return to in §10: the org-level VPC Service Controls perimeter that the prose calls the strict security boundary is drawn nowhere. The "VPC" box in the diagram sits around the shared hubs only, and the tenants are outside it [d1].

This all looks expensive. The next section is why it is cheaper than it looks.

4. You pay for the boundary once and it pays out three times#

flowchart TB
    B["One project per business unit"]
    S["<b>security</b> isolation<br/>cross-tenant access is<br/>structurally impossible"]
    F["<b>failure</b> isolation<br/>one unit's incident stays<br/>inside that unit"]
    Q["<b>quota</b> isolation<br/>one unit's traffic spike<br/>cannot starve another"]
    O["Three properties usually bought<br/>from three different budgets"]

    B --> S --> O
    B --> F --> O
    B --> Q --> O

    style B fill:#dcfce7,stroke:#15803d,color:#14532d

This is a leverage diagram, not a component diagram. The crux is that the same boundary read three different ways answers three questions that are normally owned by three different teams, which is what makes an expensive-looking decision defensible on a spreadsheet. It is drawn as one cause fanning out rather than as three features because the fan is the argument: nobody would fund project-per-tenant on security grounds alone, and the case only closes when the reliability and capacity arguments are counted against the same line item. The source states these three in three separate places and never adds them up, so the addition is this brain's.

Synthesized from n13, which is this brain's synthesis of three separate statements in the source.

The document spreads this across three separate pillars and never says it in one place, so it is easy to read the tenancy decision as a purely security-driven cost. Put the three statements side by side [n13]:

💡 Noisy neighbour - one tenant's load degrading another's service because they share a finite resource (CPU, connections, or here, a model endpoint's quota). The classic multi-tenancy failure that has nothing to do with security and everything to do with sharing.

Reading these as one decision rather than three is this brain's synthesis, not the source's claim - each row is stated, the unification is mine. But it is the reading that makes the architecture defensible, and it is what you would use to justify the cost internally. A project boundary bought for compliance reasons hands you rate-limit isolation and incident containment for free, and none of the three would have been cheap to build separately.

It also sets up the trap in movement C. If one decision buys three properties, then every deletion you make for cost reasons sells three properties at once, and the cost section will only mention the one it is optimising. Hold that.

The boundary now protects the tenant. It does nothing at all about what arrives at the front door, which is the next section.

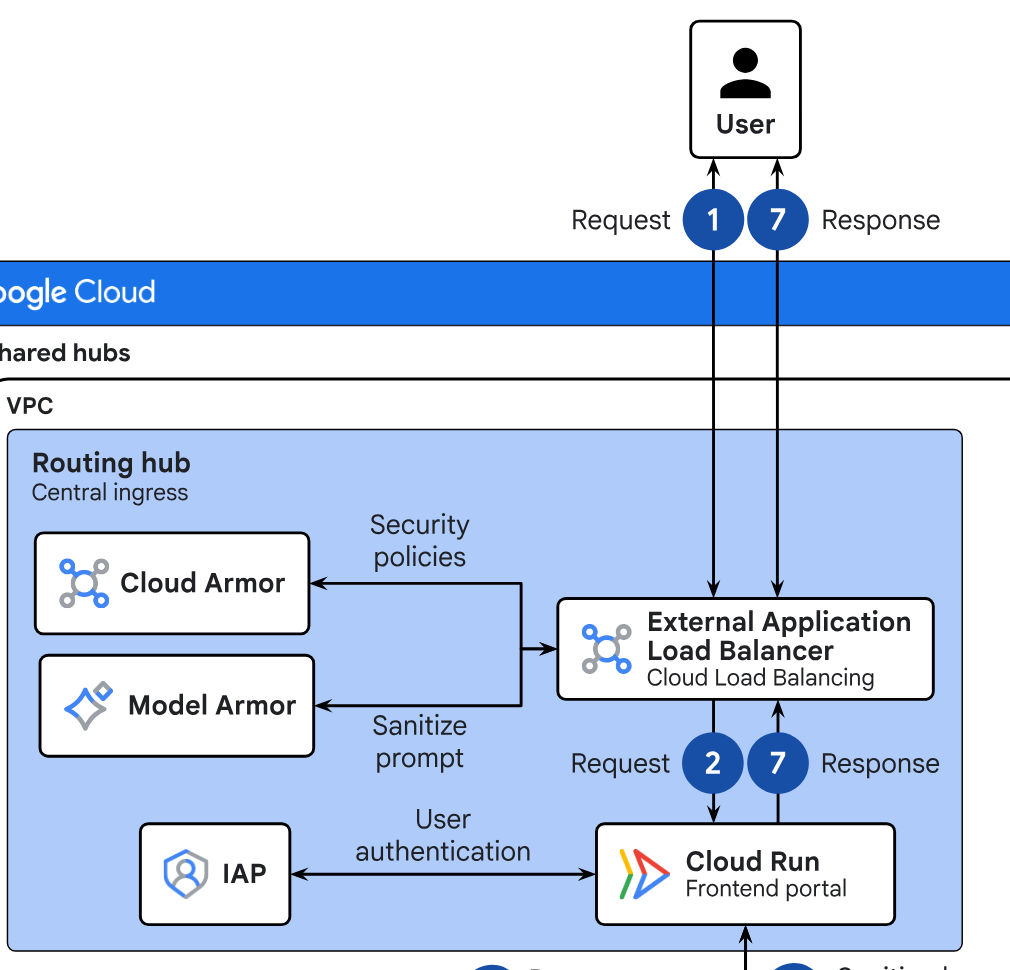

5. The ingress is a filter chain, and each filter catches what the previous one structurally cannot#

• What it teaches: the shared hub is not a proxy with a WAF bolted on. It is an ordered sequence of filters, and the order is the argument [n5, §Agentic flow].
• Corroborated by: the flow prose, which walks the same order - Cloud Armor absorbs L4 DDoS and filters SQLi, XSS and bot signatures; "Model Armor intercepts the payload to detect and reject prompt injection attacks or malicious intent"; then the portal "Uses IAP to verify the user's corporate identity and device health". "If any of these layers detect a threat or unauthorized access, then the load balancer drops the request at the network edge" [§Agentic flow steps 1-2].

Do not read that as a list of three products. Derive it instead, by asking at each stage what the stage before it structurally cannot answer.

Cloud Armor comes first and handles volume and shape, which means a SYN flood, an injection string in a parameter, or a known bot signature. It reasons about packets and patterns, and that is the whole of its vocabulary. What it cannot do is read a paragraph of English and tell you that the paragraph is an instruction to the model, because to Cloud Armor a prompt injection is a well-formed POST body. Something further along has to read the text as text.

Model Armor does exactly that, and only that, as a content filter for model-facing text. What it cannot do is tell you who sent it, so a perfectly benign prompt from someone with no right to be here passes it cleanly. That leaves the question of who is asking.

IAP answers it, with corporate identity and device health together. What it cannot do is know which of twelve agents this person's question belongs to, and that is §6.

💡 Identity-Aware Proxy (IAP) - a reverse proxy that authenticates the caller and evaluates access policy before the request reaches the application, so the app never sees an unauthenticated request and does not implement login at all.

The genuinely notable move here is where the second filter lives. "The routing hub uses Service Extensions on the external Application Load Balancer to integrate Model Armor directly into the request flow" [§Architecture, n6]. In other words, prompt safety is being treated as a network edge concern, in the same component and at the same stage as the WAF, rather than as a library the agent calls or a wrapper in the application. The prompt is inspected before any code you wrote has run.

That is worth arguing about in both directions. In its favour, the placement is unbypassable by application bugs, it is uniform across every tenant, and it puts one team in charge of a control that would otherwise be implemented twelve slightly different ways. Against it, the edge sees the raw request and not the assembled prompt, so it cannot inspect what your context builder actually sends the model, which is to say the retrieved documents, the tool results and the memory. Indirect injection arriving through a tool result never passes this filter. The source does not raise this; it is my reading of where the boundary sits, and it is why the tenant-local Model Armor in the figure is not redundant.

Hold on to one detail: the Model Armor in this picture is shared by every tenant. It matters in §8.

6. Identity is established once at the front door and then spent three times#

flowchart TB
    U["the human caller"]
    I["identity established once,<br/>at the edge, by IAP"]
    A["spend 1 - which tenant project<br/>does this request route to?"]
    B["spend 2 - what may the agent's<br/>own principal reach at all?"]
    C["spend 3 - what may this user see<br/>inside that tenant's data?"]

    U --> I --> A
    I --> B
    I --> C

    style I fill:#dcfce7,stroke:#15803d,color:#14532d

This is an authority diagram, not a sequence diagram. The crux is that one authentication event is consumed by three different authorization decisions, and each one fails differently if it is skipped, so treating identity as a single check at the door is what produces systems where being logged in is mistaken for being permitted. It is drawn as one establishment fanning into three spends because the spends are independent: the routing decision can be right while the principal boundary is too wide, and both can be right while the user sees another user's rows inside the correct tenant. The third spend is the one the shared-component variants in Movement C quietly make your problem.

Synthesized from n4, n8 and n9.

The chain has authenticated a person. Now the portal has to decide which of twelve agents gets the request, and the document's answer is one clause long. It "Extracts the user's identity, such as the user's business unit or tenant ID", and "Uses a dynamically maintained registry to identify the correct target tenant" [§Agentic flow step 2, n8].

That is worth more attention than the document gives it, in both directions.

In its favour, routing is data rather than code. Onboarding a thirteenth business unit is a project plus a registry row, with no deploy of the shared portal and no code change on a component every tenant depends on. That is the correct shape, and it is what makes "standardize tenant onboarding" a realistic goal rather than a slogan [§Operational efficiency].

Against it, the registry is a single shared component sitting in front of every isolation boundary in the design, and the document describes it in nine words. There is no schema, no consistency model, nothing on what happens when it is stale, and nothing on who may write to it. Everything §3 built is downstream of a lookup that decides which tenant a request belongs to. single-leg and needs-check: the registry appears nowhere in the figure and is never described [n8].

Then notice what else that identity is used for, because IAP's context turns out to be read three times for three unrelated purposes [n12]. First, it decides which tenant the request routes to [§Agentic flow]. Second, it is the key for rate limiting, where the design says to "Extract the tenant identity from the IAP context", track usage in Memorystore for Redis, and reject over-limit tenants before they reach a shared model endpoint [§Security, Agent Platform]. Finally, it is the key for cost attribution, because "To identify the tenant for each request, extract the user identity from the context that IAP provides" [§Cost, Cloud Run].

One authentication event therefore becomes the tenancy key for security, capacity and billing. That is elegant, and it is also concentration. IAP is doing considerably more architectural work than "logging users in", and if its context is wrong, three subsystems are wrong in correlated ways. The unification is my reading; the three uses are each the document's [n12, single-leg].

We now have every piece. Let us run one request through it.

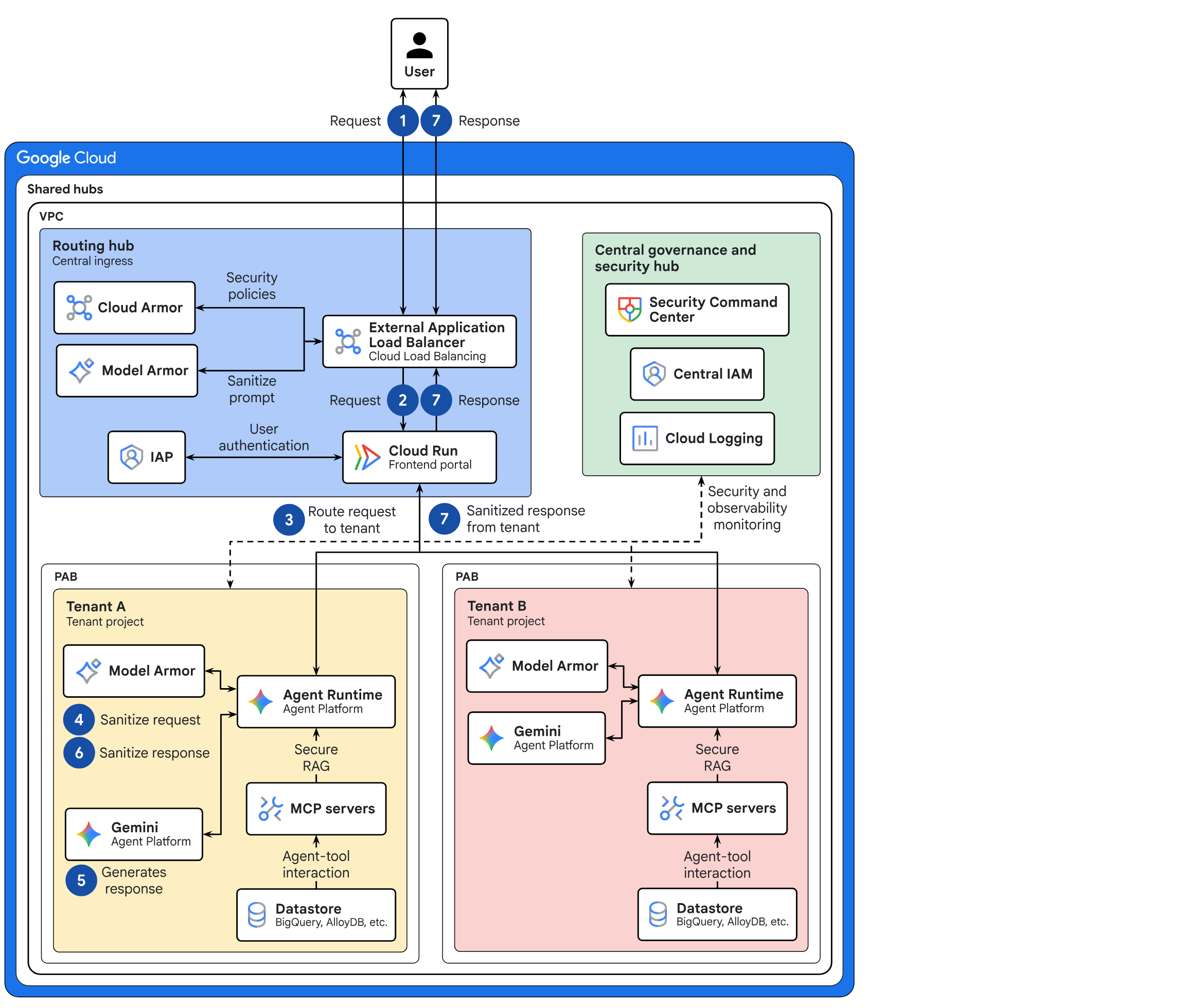

7. One request, end to end, and what breaks at each step if you delete the component#

• What it teaches: the complete shape, with the flow numbered 1-7 on the diagram itself. The governance hub on the right (Security Command Center, central IAM, Cloud Logging) is the piece the earlier crops left out - it is how a central team retains oversight of units it has deliberately walled off [n1, §Architecture].
• Corroborated by: the component table and the seven-step agentic flow, which name the same components in the same arrangement.

Take the document's own scenario, a retailer with an electronics division and a home goods division, each with its own agent and its own warranty and returns data [§Use case]. A customer asks the electronics agent about a warranty. Every step below is the source's, and the "delete this and..." column is mine.

Two things fall out of the trace that the component list does not show.

The first is that the prompt path is inspected four times, at the edge injection check, the tenant injection check, the tenant PII mask inbound and the tenant PII mask outbound. This is Swiss cheese applied to prompts, which is a pattern this brain already holds from S1's QA gates (evals.md), where you stack several imperfect filters so their holes rarely line up.

The second is sparser and less comfortable. Step 6 is the only outbound control in the entire architecture. Everything else, meaning Cloud Armor, IAP, PAB and the perimeter, guards what comes in or what the agent may reach. Exactly one component inspects what leaves, which is why §8 begins with the recommendation to move it out of the tenant.

Movement C - the variations, read as deletions#

flowchart TB
    B["The architecture from Movement B"]
    V1["shared model endpoint"]
    V2["shared MCP server"]
    V3["a single Model Armor instance"]
    V4["private ingress"]
    T["Each one converts a <b>structural</b> guarantee<br/>into one you must now enforce<br/>in software you own - n14"]
    D["and two of them contradict the document's<br/>own security section - d2, d3"]

    B --> V1 --> T
    B --> V2 --> T
    B --> V3 --> T
    B --> V4 --> T
    T --> D

    classDef bad fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    class T,D bad

This is a trade diagram, not a menu of options, and the point is that the four boxes are one box. The crux is that every cost saving on offer is the same move in different clothing, so the real decision is not which variant to pick but how much enforcement you are willing to write and own. They are drawn as four parallel paths collapsing into a single consequence because the document presents them separately, across different sections, in a way that makes each look like an independent engineering judgement. Seeing them as one trade is what turns the second half of the source from a cost appendix into its actual lesson, and it is why this movement is the payload rather than Movement B.

Synthesized from n10, n11, n14, and divergences d2 and d3.

8. Every alternative in the second half is the same trade, and the plant now pays off#

Movement B is over. What follows in the document is four "design alternatives" and four "design considerations" pillars, presented as independent decisions about networking, compute, MCP and cost. They are not independent. They are one trade, made four times [n14].

Take them in turn. Sharing a model endpoint in the central hub puts every tenant into one quota pool, which gives back the quota isolation §4 was so pleased about, so you must now build tenant rate limiting with Memorystore counters or put an API Gateway in front of it "to prevent malicious attacks". Sharing an MCP server in a shared services project gives back the perimeter, so you must now propagate end-user identity and enforce authorization inside the server, which is §9. Running a single Model Armor instance at the edge only gives back the tenant-local PII filter in both directions, which is the plant from §5 coming due below. And moving the ingress to an internal load balancer gives back the edge security features themselves, because a regional internal ALB gets "a restricted set of standard WAF policies" and a cross-region one "doesn't support any Cloud Armor integration" [n15]. Compressed:

The last row is the one that generalises furthest and is easiest to get wrong at procurement time. Making the ingress more private makes it less defended. At first glance these should point the same way, since both are filed under "security", and they do not. The reason is that the edge features, meaning bot management, Adaptive Protection and the full WAF ruleset, exist at the global external front door and thin out as you retreat behind it. Compliance will ask for the private ingress, and nobody in that meeting will mention that it costs you Adaptive Protection. single-leg on the vendor's own capability statements, which is the class of claim T2 is strongest on [n15].

Now the plant from §5. The cost section says this [§Cost, Model Armor row]:

"To enforce strict governance and a zero-trust posture, this architecture deploys Model Armor at two layers: in the routing hub and within each tenant project. Although this two-layered approach helps to ensure data sovereignty, it increases latency and operational costs. To reduce costs and system complexity, filter all of the prompts and responses by deploying Model Armor exclusively in the routing hub."

Read the two halves against each other. The layer being deleted is the tenant-local one, and the layer kept is the shared one, which is the one I asked you to hold in §5. So under the cost-optimised variant, every tenant's PII masking happens in shared infrastructure, and step 6 of the trace, the only outbound control in the architecture, now runs outside the tenant boundary the whole design exists to maintain. The sentence concedes this in its own subordinate clause, because the two-layer approach is what "helps to ensure data sovereignty" [d2].

Neither option is wrong. Presenting the swap as a cost tweak is. A reference architecture that offers a cheaper variant owes the reader the condition, meaning which tenants may take it, and this one does not supply it. My reading is that a unit whose data is regulated keeps the local filter, while a unit running on public catalog data probably does not need it. That condition is a sentence long, and its absence is the most consequential editing failure in the document.

The MCP fork in row 2 is different in kind from the other three, and that difference is the most transferable idea in the source. It is §9.

9. When you move a component out of the tenant, isolation stops being structural and becomes something you enforce#

flowchart TB
    I["component inside the tenant<br/><i>the perimeter does the work</i>"]
    O["component shared across tenants<br/><i>you do the work</i>"]
    R["'you securely propagate<br/>the end-user identity'"]
    M["and no mechanism is named - n10, n11"]

    I -->|"move it out"| O --> R --> M

    classDef bad fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    class O,M bad

This is an obligation diagram, not an architecture diagram, and the last box is the finding. The crux is that sharing a component does not remove a security requirement, it relocates it from the platform into code you have not written yet, and the document's phrasing hides the transfer inside a verb. It is drawn as a single transformation rather than as a comparison because the two states are not alternatives you weigh on equal terms: one is enforced by infrastructure you are already paying for, and the other is a sentence in a design document. "Securely propagate" is doing an enormous amount of work here, and naming no mechanism is exactly the kind of absence Movement D is about.

Synthesized from n10 and n11.

Look again at what the local MCP server gets for free. The document is unusually clear about it [§Design alternatives, MCP servers, n10]:

"Network: A project-level VPC Service Controls perimeter and PAB Policy provide inherent security and isolation, which helps to ensure no cross-tenant access. [...] Security: The fixed IAM boundaries of the tenant project help minimize lateral risk surfaces and they don't require complex identity mappings."

Every one of those properties is a consequence of where the server is. Its authors need not have thought about tenancy at all, because the perimeter and the boundary hold regardless. The server could be carelessly written and still not leak across tenants, since there is nothing on the other side of the wall for it to reach.

Now move it to a shared services project, which the document recommends for common corporate systems such as expense tools, HR systems and corporate knowledge bases, on the reasonable grounds that running twelve copies of an HR connector is silly. Read what the same table says on the same three axes:

"Network: shared MCP servers require private connectivity, such as Private Service Connect or VPC Network Peering. [...] Security: You securely propagate the end-user identity from the agent in the tenant project to the shared MCP server. To help ensure that users can only access or modify data that they're permitted to, the shared MCP server uses the propagated user identity to enforce fine-grained access control on the backend system."

The guarantee changed category. It was a property of the topology, and it is now a property of an implementation. Three things must all be true on every single call. The agent must attach an identity. That identity must survive the hop intact and unforgeable. And the shared server must correctly enforce authorization from it. Each is a thing someone has to build correctly, and the document names no mechanism for any of them - no token format, no exchange, no audience restriction, no delegation model, no answer to what the agent presents when it acts on a schedule with no user present [n11, single-leg, and the framing here is mine, not a sentence the source writes].

💡 Identity propagation - carrying the original caller's identity across a service hop so the far end can authorize as that user rather than as the calling service. The alternative is the calling service using its own identity, which makes it a confused deputy: it holds broad access and acts on requests it cannot fully vet.

This is not a small gap, and it is not a gap in Google's writing so much as a gap in the field. This brain already holds the answer for the human case and does not hold it for the agent case. S3 is exactly this problem solved for web apps, with scopes bound to a token, enforcement at the resource server rather than the client, a consent step generated from the request, and channel separation so the untrusted leg carries only material that is useless if stolen [agent-security.md, S3 n5, n7]. That note's standing open question is what happens to the model when the client is non-deterministic and the human is not present at the moment of the call. A shared MCP server serving twelve tenants' agents is that question arriving in a production architecture diagram, and the recommendation to use one comes with a requirement and no protocol.

It also lands directly on an open question in mcp.md, which asks what an aggregating server owes the servers behind it and lists auth propagation first. This source supplies the requirement from the deployment side and no more of an answer than S10 did.

One general form to take away, well beyond MCP: a shared component is not just an availability and cost decision - it converts every boundary it used to sit inside into an authorization problem it must now solve itself. That is the transferable claim, and it is the one to carry into any "should this be per-tenant or shared" argument you have next.

10. Where the document's headline guarantee quietly stops holding#

flowchart TB
    G["'even if an agent identity<br/>is compromised...'"]
    T["holds for the topology<br/>the figure draws"]
    V["does not hold for the shared variants<br/>recommended three sections later - d3"]
    P["and the cost section deletes the tenant-local<br/>PII filter the security section calls<br/>essential, in a sentence that concedes<br/>the two-layer design is what ensures<br/>data sovereignty - d2"]

    G --> T
    G --> V --> P

    classDef bad fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    class V,P bad

This is a scope diagram, not a criticism, and it marks where a promise silently narrows. The crux is that the document's strongest guarantee is stated unconditionally and is true only of one configuration, and the configuration it is not true of is the one the same document recommends on cost grounds. It is drawn as a single claim splitting because that is literally what happens across the source: nothing retracts the guarantee, and no sentence connects it to the variants. These are the two internal contradictions this note gates as divergences, and they are the reason Movement C is worth slowing down for rather than skimming as a cost appendix.

Synthesized from divergences d2 and d3.

Two more findings close movement C, and they are of the same species. Each is a claim that is true of the drawn architecture and not of the recommended one.

The first is the compromise guarantee, which the use case states without qualification: "Even if an agent identity is compromised, the agent can't access unauthorized Google Cloud resources" [§Use case]. That is true of the topology in the figure, with fully local MCP, dedicated endpoints and PAB on every tenant. It is not true unqualified once you take the alternatives from §8. A shared MCP server reachable by several tenants' agents moves enforcement into unspecified propagation logic, and a shared model endpoint puts tenants in one quota pool needing "mitigation strategies" against abuse. The guarantee sits in one section and its qualifications sit three sections later with no cross-reference [d3].

A guarantee whose truth depends on which options you took, stated without naming them, is the characteristic failure mode of the reference architecture genre - and the reason to read one back to front, alternatives first, before believing the headline.

The second is the missing perimeter, and it is the plant from §3 coming due. Go back to the full figure in §7 and look for VPC Service Controls. The prose calls it a "strict security boundary" that "prevents data exfiltration", at organisation scope, and names it as one of the three things you combine for tenant isolation [§Architecture; §Security, VPC row]. The figure draws a "VPC" box around the shared hubs only, so the tenant projects sit outside it, and no perimeter is drawn around them, the pair, or the organisation [d1].

This is almost certainly diagram simplification, since a network VPC and a VPC-SC perimeter are different objects that happen to share three letters. But the consequence is not hypothetical. An engineer building from the picture ships project isolation plus PAB and no exfiltration control at all, and would not notice, because the picture looks complete. Recorded as a divergence, not resolved.

Movement D - what the document does not contain#

flowchart TB
    C["11. two cost controls that are<br/>really safety controls in disguise"]
    A["12. three absences"]
    N["No latency figure, no cost figure,<br/>no incident, no named deployment"]
    R["Two authors, 21 contributors,<br/>a Terraform implementation"]
    V["The strongest available form<br/>of unmeasured"]

    C --> V
    A --> N --> V
    R --> V

    style V fill:#fef3c7,stroke:#b45309,color:#78350f

This is an evidence diagram, not a summary, and it is the shortest movement and the one most likely to matter in six months. The crux is that the absences in a reference architecture are load-bearing information, because what a vendor declines to specify is usually what it has not solved. It is drawn with the credentials and the absences feeding the same node deliberately: the contributor count and the Terraform module are real and they are exactly what makes this document easy to over-trust, so putting them on the same footing as the missing numbers is the honest shape. Both legs of this kit's corroboration gate here are the same team's prose and the same team's diagram, which is worth remembering before citing anything from it.

Synthesized from n18 and the source-level assessment in "What to distrust in this note".

11. What it costs to run, and two cost controls that are really safety controls#

The cost pillar looks like FinOps boilerplate and contains two things worth keeping.

Start with context, which is the variable cost, and notice that one of its controls is a loop guard in disguise. The document offers three levers [§Cost, Agent Platform, n17]. The first is to summarise older conversation with a model. The second is to prune tool outputs, and the example is concrete, since "if you only need the column names from your data, you can remove excessive metadata from a database schema fetch", using "heuristics, filtering, or a small language model". The third is to enforce "a session maximum token limit" whose stated purpose is "to help prevent infinite loops and to help control costs".

That third lever is filed under cost and is not really a cost control. A token cap is the cheapest available bound on an agent that will not stop, because it terminates a runaway loop without needing to detect that the loop is a loop. It is worth knowing as the crude backstop underneath whatever loop detection you build. The second lever is the same claim context-engineering.md already holds from S2 and S10, arriving here from a third vendor with a cost motive rather than a quality one [n17, single-leg].

The other thing worth keeping is that agent failures need agent-shaped answers. On a 429 the design says exponential backoff, and on a blown context deadline "the agent performs a graceful shutdown and it reports partial progress back to the user", with deadlines attributed to "slow tool calls, third-party API latency, processing massive datasets, or compute-intensive processing" [§Reliability, n16]. Partial progress is a meaningful response for a multi-step agent and a meaningless one for a request/response service. It is the smallest concrete instance in this document of agent workloads needing different operational semantics, not just different components.

That leaves the question nobody in these documents usually asks, which is who pays for the shared hub. Three allocation models are given with stated conditions, namely an even split "when the platform is a baseline utility or when the overhead of granular tracking outweighs the cost benefits", proportional chargeback "when tenant consumption varies drastically and you have robust telemetry", and fixed or tiered "when tenants require different service-level agreements" [n18]. This is standard FinOps, but it is the first time any source in this brain has asked who funds shared agent infrastructure, and the answer determines whether business units adopt the platform or route around it.

12. Three absences, which tell you more than the components do#

flowchart TB
    D["What a reference architecture<br/>declines to specify"]
    A1["no measurement of any kind"]
    A2["no named deployment"]
    A3["no mechanism for the obligations<br/>the shared variants create"]
    C["is usually what has not been solved,<br/>rather than what was too obvious to write"]

    D --> A1 --> C
    D --> A2 --> C
    D --> A3 --> C

    style C fill:#fef3c7,stroke:#b45309,color:#78350f

This is a reading-rule diagram, not a finding about Google. The crux is that absences in vendor architecture writing are evidence, and the specific absence worth hunting is a named mechanism behind a reassuring verb. It is drawn with three inputs reaching one conclusion because no single absence would justify the inference: a document can omit latency figures and still be rigorous, and it can lack a named customer for ordinary commercial reasons. The three together, in a document with 23 contributors and a Terraform implementation, are what make the pattern legible. This rule leaves the source entirely and is the most portable thing in the note.

Synthesized from n11 and n18. The generalisation is this brain's.

A reference architecture is a statement about what its author considers settled. So finish by reading what is not in it.

The first absence is evaluation, and it is total [g1]. There are roughly five thousand words about running agents for enterprise business units, and the word "eval" does not appear. Observability is entirely infrastructural, meaning Cloud Logging, Monitoring, "monitor the health and performance of the entire platform", and alerts to "proactively detect and troubleshoot issues". There is no per-tenant answer-quality signal, no regression gate, and nothing about whether the electronics agent is right. Set that against S1, whose first instruction is to log the flat end-to-end trace precisely because it is the precondition for evals, and against S5's title. This architecture will tell you the agent is up. It will not tell you the agent is wrong. Recorded as an observation and deliberately not promoted as a claim, because an absence is not a source [ADR-0012].

The second absence is any path between tenants, and any discussion of wanting one [g2]. "I bought a TV and a sofa, where are my orders?" spans both divisions, and this architecture has no answer. There is no A2A, no supervisor agent, no cross-tenant orchestration and no shared conversational state. That may well be correct, since the isolation is the product, but it is not made as a call, and it means this is n independent agents behind one door rather than a multi-agent system. Anyone reading it as a template for multi-agent enterprise deployment should notice which of those two they are getting.

The third absence is memory [g3]. Session context appears only as a cost to be summarised away. Nothing persists between sessions, and nothing asks whether per-tenant memory would be a further isolation boundary, or what a shared memory store would do to the injection surface. This brain holds two 2026 vendor sources (S6, S7) treating memory as core agent architecture, and a 2026 enterprise reference architecture with no memory tier is a real signal about how far the practice is from the pitch.

Diagram (mental model)#

flowchart TB
    Q["Should this component be<br/>per-tenant or shared?"]

    Q --> L["PER-TENANT<br/>the drawn default"]
    Q --> R["SHARED<br/>every cheaper variant"]

    L --> L1["Isolation is STRUCTURAL:<br/>a property of where the thing sits"]
    L1 --> L2["Holds even if the component<br/>is carelessly written"]
    L2 --> L3["Cost: N copies to run,<br/>N to patch, N to onboard"]

    R --> R1["Isolation becomes ENFORCED:<br/>a property of code you now own"]
    R1 --> R2["Needs: identity propagated,<br/>unforgeable, correctly authorized<br/>on every call"]
    R2 --> R3["Cost: one copy,<br/>and a new class of bug"]

    style L1 fill:#e8f0fc
    style R1 fill:#fce8e8

Read it top down as one question and its two answers. The two shaded boxes are the only substantive content, and everything below them is a consequence, with blue marking the guarantee you get from topology and red marking the guarantee you have to produce yourself. It applies to every fork in §8, meaning the MCP server, the model endpoint, Model Armor and the ingress, which is why it is drawn once rather than four times. The crux is that sharing a component does not merely trade cost against isolation, it changes what kind of thing your isolation guarantee is, from a fact about the architecture into a claim about an implementation.

The fork is drawn once, at the top, for a specific reason. The four decisions in §8 look independent in the document and are not, so presenting them as four separate diagrams would reproduce exactly the mistake that lets a team take three cheap options in three separate meetings and never notice they have dismantled the design. The asymmetry between the two branches is then the teaching point. The left branch's cost is visible and countable, since it is N copies, N patch cycles and N onboarding runs, and it lands on a platform team's budget. The right branch's cost is a category of defect that shows up later, in someone else's incident, and appears in no cost model at all. That asymmetry is why the cheap branch wins arguments it should lose. So if you take a shared component anyway, the useful question is not "is this cheaper" but "what exactly now enforces what the perimeter used to?", and if nobody can name it in one sentence, it is not enforced.

Synthesized from n10, n11, n14, n15 and d2. Not a diagram the source draws - it draws only the left branch.

💡 Terms#

What to distrust in this note#

The tier is T2, and this is the strongest available form of unmeasured. It is Google Cloud writing about Google Cloud products, in the genre that most rewards confident shapes, because a reference architecture documents a design rather than a deployment. There are two named authors, 21 further contributors and a Terraform implementation, and there is no latency figure, no cost figure, no incident report, no named customer, no comparison against any alternative architecture. Nothing here is evidence that this design works. It is evidence that a large, competent group of practitioners believes it is right, which is worth something and is not the same thing.

The corroboration gate is also weaker on this source than the verdicts suggest, because both legs, the prose and the figure, were produced by the same team for the same page. A corroborated node in nodes.md therefore means the document is internally consistent, not that anything was independently confirmed. On sources whose second leg is a benchmark chart or a console recording, agreement carries more. Here it is the same claim drawn instead of typed, and every OK should be read accordingly.

The vendor is also being cited on a topic they sell, since every named mitigation is a Google Cloud product. That does not make any of it wrong, and the isolation argument in §3 would hold with the vendor names swapped out. But where the document says "use Model Armor at two layers", the alternative it is not comparing against is "use something else", never "consider whether you need this".

The most reusable claims here are also among the least corroborated. §9's structural-to-enforced framing, §4's one-boundary-three-payoffs, and the §8 table's reading of four independent-looking decisions as one trade are all this brain's synthesis of statements the source makes separately. They are the parts most worth carrying to another cloud or another vendor, and they are the parts the source never asserts. They are labelled inline where used, and they are labelled again here because a reader lifting them into a design document should know whose claims they are.

Finally, the > **Background, supplied.** block in §2 is mine, not the source's, and is uncited by construction. So are the "delete this component and..." column in §7 and every > 💡 definition.

Open questions#

• What actually propagates the identity to a shared MCP server? The single highest-value research target in this source [n11, d3]. The document states the requirement and names no mechanism. Candidates the brain already gestures at: OAuth 2.1 token exchange, SPIFFE/SPIRE workload identity, the MCP authorization spec. This sits at the exact intersection of agent-security.md's stated identity track and mcp.md's "what does an aggregating server owe the servers behind it".
• Is Model Armor at the edge sufficient, given that it sees the request and not the assembled prompt? Indirect injection through a retrieved document or a tool result never crosses the load balancer. My reading, unaddressed by the source, and it determines whether d2's cost recommendation is merely a trade-off or a hole.
• What is the actual latency cost of four inspection passes on the prompt path? The document asserts that two Model Armor layers "increase latency" and never quantifies it - which is the number the cost recommendation turns on.
• What does the registry look like? [n8] Nine words for a shared component that sits in front of every boundary in the design.
• Does anyone run this? The genre's standing question. A reference architecture with a Terraform implementation and no reported deployment is a proposal.
• How do you serve a request that legitimately spans two tenants? [g2] Unasked by the source, and the first question any real retailer would hit.

Feeds these topics#

• ../../brain/topics/agent-security.md - the isolation stack and the principal boundary (claims 101, 102), layered prompt filtering at the network edge (claim 103), and the structural-to-enforced framing (claim 106). Also the architect note on why this is not the trigger for the identity split.
• ../../brain/topics/mcp.md - MCP as the mandatory data seam and the local-vs-shared deployment fork (claims 104, 105). Second source for this topic; see ADR-0015.
• ../../brain/topics/agents.md - one tenancy boundary paying out three times (claim 107) and agent-shaped failure semantics (claim 108).
• ../../brain/topics/context-engineering.md - the token cap as a loop guard rather than a cost control (claim 109).

Presentation narrative#

A talk track for a room deciding where the wall goes between one organisation's agent tenants, derived entirely from the gated nodes above. It presents a shape rather than a result: this is a vendor reference architecture with no measurement of any kind, and the closing slide says what that does and does not permit you to conclude.

Slide 1 - The thing inside your tenant boundary reasons for itself, and that breaks the standard answer#

Ordinary multi-tenancy assumes an engineer writes the query, and an agent composes its own data access at run time. The usual answer is one application, a tenant ID on every row, and a data access layer that appends the tenant predicate. That collapses in two independent places here. The set of queries is no longer finite, so nobody wrote the query that could have been reviewed. And the input steering the agent is attacker-influenceable text, so a predicate the model was persuaded to omit was never a predicate at all.

Either failure alone could be patched, which is why both matter. A finite query set could be audited, and a trusted input could be sanitised. Together they force one conclusion, and it is the sentence the whole architecture spends: isolation has to live somewhere the model has no vote.

flowchart TB
    T["one app, a tenant ID,<br/>a filtered query"]
    A["the agent composes its own<br/>data access at run time"]
    B["and the input steering it is<br/>attacker-influenceable text"]
    C["isolation has to live somewhere<br/>the model has <b>no vote</b>"]
    T --> A --> C
    T --> B --> C
    style C fill:#dcfce7,stroke:#15803d,color:#14532d

This is a refutation slide, not a design. The crux is that the standard SaaS answer breaks in two independent places, so patching either one is not enough. A finite query set could be reviewed and a trusted input could be sanitised; neither is available here.

Synthesized from n1, n2.

Slide 2 - One tenancy decision buys three guarantees, and that is what makes it fundable#

The boundary is the platform's own coarsest one, a cloud project per business unit, with the agent's authority capped on the principal rather than by care in the code [n2, n4]. A Principal Access Boundary bounds what that identity can reach at all, whatever the agent decides to do with the permissions it holds.

The leadership significance is arithmetic rather than architectural. That single decision delivers security isolation, failure isolation and quota isolation, which are three properties normally bought from three different budgets by three different teams [n13]. Nobody funds project-per-tenant on security grounds alone, and the case only closes when reliability and capacity are counted against the same line item. I should be clear that the addition is this brain's: the source states the three in three separate places and never puts them together.

This is the boundary itself, and the absence is the content. The crux is that there is no edge between the two tenants to draw - cross-tenant access is not forbidden by policy, it is structurally unavailable [n2, n4]. The same boundary also delivers failure and quota isolation [n13].

Slide 3 - Identity is established once and then spent three times#

One authentication event at the edge is consumed by three different authorization decisions, and each fails differently if it is skipped. The first decides which tenant project the request routes to. The second decides what the agent's own principal may reach at all. The third decides what this particular user may see inside that tenant's data [n4, n8, n9].

What engineers should take from this is that being logged in and being permitted are three separate questions here, not one. The routing decision can be correct while the principal boundary is too wide, and both can be correct while a user sees another user's rows inside the right tenant. Hold onto the third spend in particular, because it is the one the cost-saving variants quietly make your problem.

This is a filter chain, and the ordering is the argument. The crux is that each filter catches what the previous one structurally cannot, ending with identity established once at the door [n6]. That single authentication is then spent three times, on routing, on the agent's own principal, and on what this user may see [n4, n8, n9].

Slide 4 - Every cost-saving option on offer is the same trade wearing different clothes#

A shared model endpoint, a shared MCP server, a single Model Armor instance and a private ingress look like four independent engineering judgements, and they are one move [n14]. Each takes a guarantee that was structural and converts it into one you must now enforce in software you own and maintain.

The document's phrasing is where this hides. Moving the MCP server out of the tenant is described as "you securely propagate the end-user identity", and no mechanism is named anywhere [n10, n11]. That verb is carrying an enormous amount of work. The question for the room is therefore not which variant to choose. It is how much enforcement code you are prepared to write, own and keep correct, because that is the actual currency the saving is denominated in.

flowchart TB
    V1["shared model endpoint"] --> T
    V2["shared MCP server"] --> T
    V3["single Model Armor"] --> T
    V4["private ingress"] --> T
    T["each converts a <b>structural</b> guarantee<br/>into one you must enforce<br/>in code you own - n14"]
    style T fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d

This is a trade slide, not a menu. The crux is that four options presented separately across the document are one move. The real decision is not which variant to pick but how much enforcement code you are prepared to write and keep correct - and "you securely propagate the end-user identity" names no mechanism at all [n10, n11].

Synthesized from n10, n11, n14.

Slide 5 - The document's headline guarantee stops holding in the configuration it recommends#

The promise that isolation survives "even if an agent identity is compromised" is stated unconditionally and is true only of the topology the figure draws, not of the shared variants recommended three sections later [d3]. Nothing retracts it, and no sentence connects the two.

The sharper instance sits in the cost section, and it is the single most useful finding in this source. That section deletes the tenant-local PII filter, keeping only the shared one, while conceding in the same sentence that the two-layer design is what "helps to ensure data sovereignty" [d2]. A cost recommendation quietly removes a control the security section calls essential, and the document never notices. This is why the second half is the payload and not an appendix.

flowchart TB
    G["'even if an agent identity<br/>is compromised...'"]
    A["true of the topology<br/>the figure draws"]
    B["not true of the shared variants<br/>recommended three sections later - d3"]
    C["and the cost section deletes the tenant-local<br/>PII filter the security section<br/>calls essential - d2"]
    G --> A
    G --> B --> C
    style B fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
    style C fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d

This is a scope slide, not a criticism. The crux is that the headline guarantee is stated unconditionally and holds for only one configuration - and not the one the same document recommends on cost grounds. Nothing retracts it and no sentence connects the two.

Synthesized from d2, d3.

Slide 6 - Adopt the shape, and understand that nobody has run this#

This is a T2 vendor document and the strongest available form of unmeasured, which is a genuinely awkward combination. It carries two named authors, 21 further contributors and a Terraform implementation. It carries not one latency figure, not one cost figure, no incident report and no named deployment. Both legs of this kit's corroboration gate are the same team's prose and the same team's diagram, so internal agreement here means very little.

The verdict the evidence supports is adopt the reasoning and pilot the topology, never cite the document as evidence that it works. What would change that is the thing most obviously missing: one named organisation running this at a stated scale with a stated cost. Until then the portable part is a reading rule rather than an architecture, and it is this. What a reference architecture declines to specify is usually what has not been solved, and the specific absence worth hunting is a named mechanism behind a reassuring verb.

This is the topology being assessed, shown so the verdict has an object. The crux is that this well-argued picture carries two authors, 21 contributors, a Terraform implementation, and not one latency figure, cost figure, incident or named deployment. Both legs of this kit's gate are the same team's prose and the same team's diagram [n18].

Key takeaway message#

When the thing inside a tenant boundary reasons for itself, application-level isolation stops being isolation, so the wall has to sit where the model gets no vote: a cloud project per business unit, with authority capped on the principal. That one decision pays out three times, which is what makes an expensive boundary defensible. The document's real lesson is in its second half, where every cheaper option hands one of those guarantees back to be re-enforced in code you now own, and where a cost recommendation deletes a PII control the security section calls essential. Adopt the shape and the reading rule, pilot before you commit, and remember that this well-argued document contains no measurement of any kind.
